1-Inch Cantilever Forward Reach Ring Mount — Eye Relief Solution for AR Optics

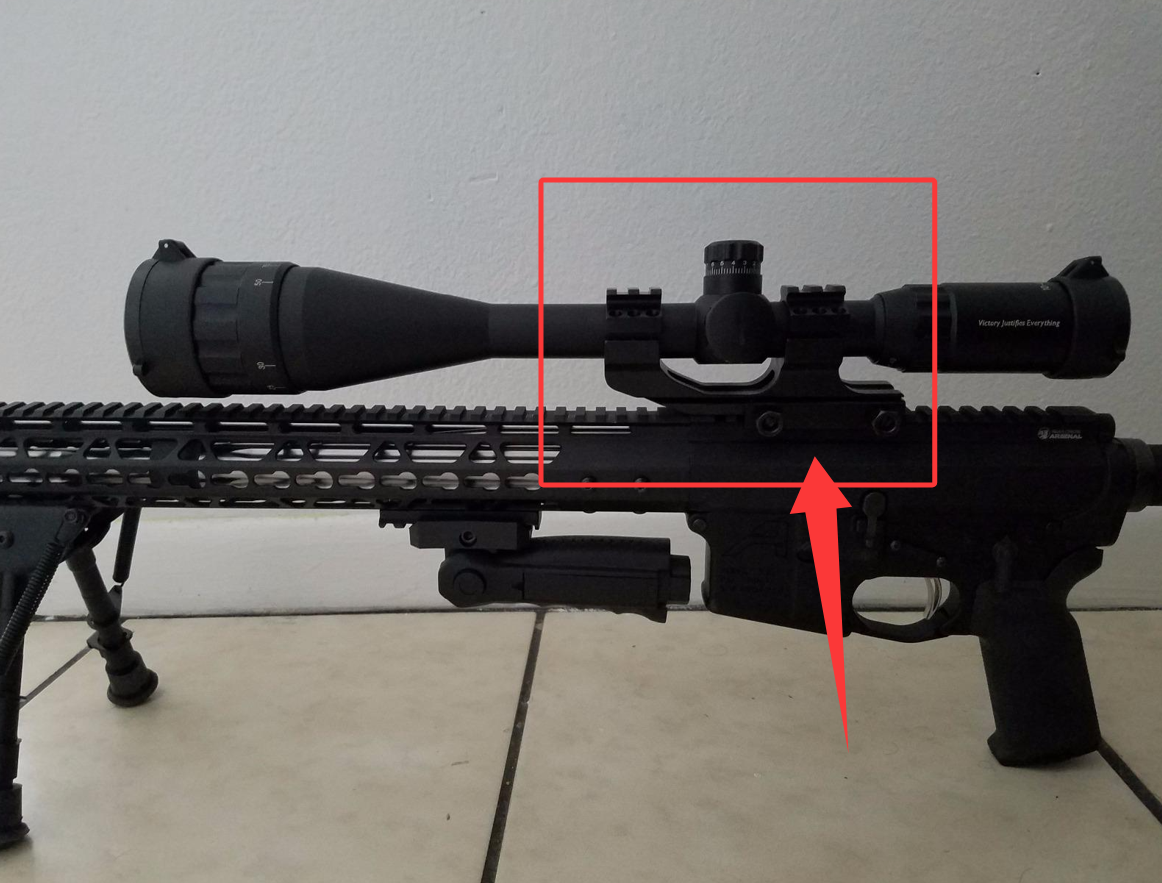

Standard rings on an AR flat-top receiver place the scope too far back — forcing you to crane your neck forward to achieve proper eye relief, which ruins your natural cheek weld and slows target acquisition. The 1-Inch Cantilever Forward Reach Ring Mount extends the scope approximately 1.5 inches forward of the mount base, placing the optic exactly where your eye naturally falls with a proper heads-up shooting stance.
Key Features
- Cantilever Forward Extension: The offset base pushes the scope rings forward of the mounting position — achieving correct eye relief on AR-15 flat-top receivers and similar platforms without bridging the mount onto the handguard.
- 1-Inch (25.4mm) Ring Diameter: The rings are precision-bored for 1-inch scope tubes — the most common diameter for traditional riflescopes and many tactical optics. The dual-ring design provides two contact points for stable optic mounting.

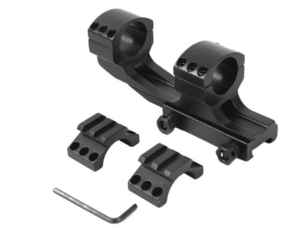

- One-Piece Aluminum Body: The rings and cantilever base are machined from a single piece of aluminum — no alignment issues between separate components. The one-piece design guarantees the rings are perfectly parallel and aligned.
- Flat-Top AR Compatibility: The base height is optimized for AR-15 flat-top receivers — the scope sits at the correct height for a natural cheek weld on standard AR buttstocks.
- Picatinny Base: The cross-bolt base with recoil lug fits MIL-STD-1913 Picatinny rails. The wide base distributes recoil forces across multiple rail slots.

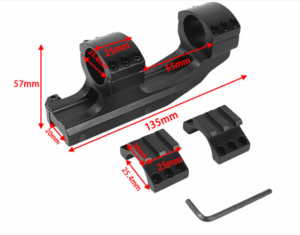

Technical Specifications
| Specification | Detail |
|---|---|
| Type | Cantilever Forward Reach Ring Mount |
| Ring Diameter | 1 inch (25.4mm) |
| Material | One-Piece Aluminum (CNC Machined) |
| Offset | ~1.5″ Forward Cantilever |
| Base | Picatinny (MIL-STD-1913) with Recoil Lug |
